EPDM Expansion Joint Double Sphere Rubber Fabric Joints
A Double Sphere Rubber Fabric Joint is a flexible piping component composed of two spherical rubber bellows reinforced with fabric layers, designed to accommodate multi-directional movements (axial, lateral, and angular) in piping systems while effectively absorbing vibrations, reducing noise, and compensating for thermal expansion, misalignment, and structural stresses.
Performance Characteristics of Double Sphere Rubber Fabric Joint
EPDM expansion joint offer ultra-high performance, reliability and longevity, thus improving plant safety and the mechanical integrity of equipment. Due to the insertion of specially designed products in rigid piping systems, Joint expansion are able to:
- Reduce mechanical noise
- Compensate for eccentricity
- Eliminate electrolysis between dissimilar metals
Technical Data of Double Sphere Rubber Fabric Joint
Main Data of Double Sphere Rubber Fabric Joint
| Nominal diameter(DN) |
Length |
Axial displacement(mm) |
Horizontal displacement |
Deflexion angle |
| mm |
inch |
mm |
Extension |
Compression |
mm |
(a1+a2) ° |
| 32 | 1 1/4 | 95 | 6 | 9 | 9 | 15° |
| 40 | 1 1/2 | 95 | 6 | 10 | 9 | 15° |
| 50 | 2 | 105 | 7 | 10 | 10 | 15° |
| 65 | 2 1/2 | 115 | 7 | 13 | 11 | 15° |
| 80 | 3 | 135 | 8 | 15 | 12 | 15° |
| 100 | 4 | 150 | 10 | 19 | 13 | 15° |
| 125 | 5 | 165 | 12 | 19 | 13 | 15° |
| 150 | 6 | 180 | 12 | 20 | 14 | 15° |
| 200 | 8 | 210 | 16 | 25 | 22 | 15° |
| 250 | 10 | 230 | 16 | 25 | 22 | 15° |
| 300 | 12 | 245 | 16 | 25 | 22 | 15° |
| 350 | 14 | 255 | 16 | 25 | 22 | 15° |
| 400 | 16 | 255 | 16 | 25 | 22 | 15° |
| 450 | 18 | 255 | 16 | 25 | 22 | 15° |
| 500 | 20 | 255 | 16 | 25 | 22 | 15° |
| 600 | 24 | 260 | 16 | 25 | 22 | 15° |
Note: 1. The special requirements of flanged expansion joint can be customized according to user's drawing. Flange standard is GB / t9115.1-2000. Various flange standards (GB, JB, Hg, CB, ANSI, DIN, BSEN, NF, en, JIS, ISO, etc.) can be selected for production. The rubber ball of flanged expansion joint can be used as natural rubber, EPDM, chloroprene rubber, butyl rubber, butadiene rubber, fluororubber, etc. when the flanged expansion joint above DN200 is used for suspension water supply, the pipeline must have fixed support or fixed support, otherwise the flanged expansion joint shall be installed with anti falling device.

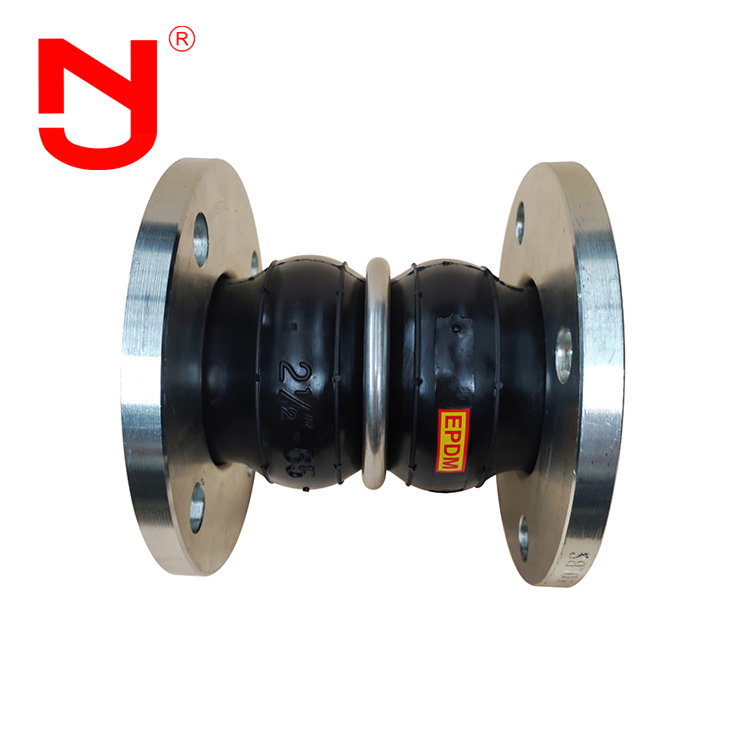

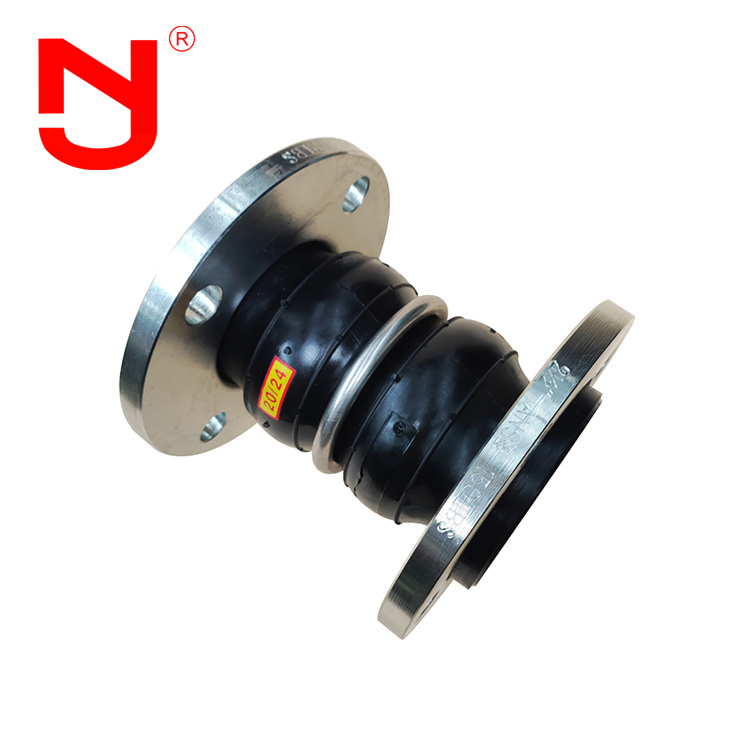

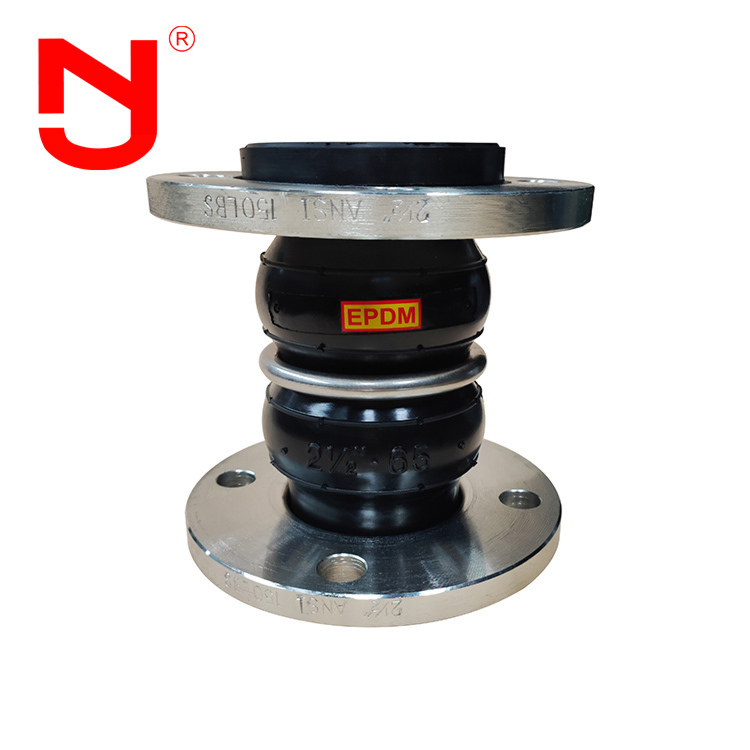

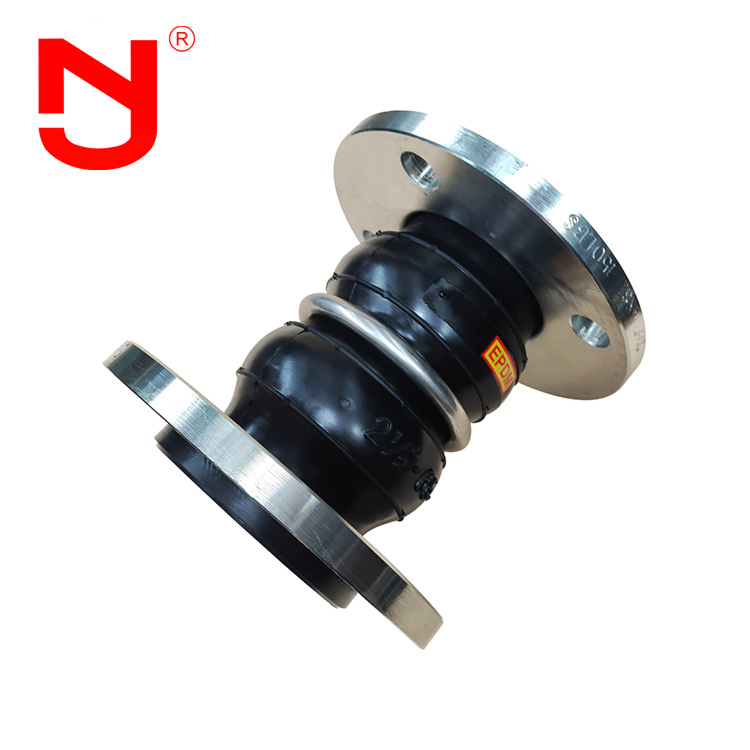

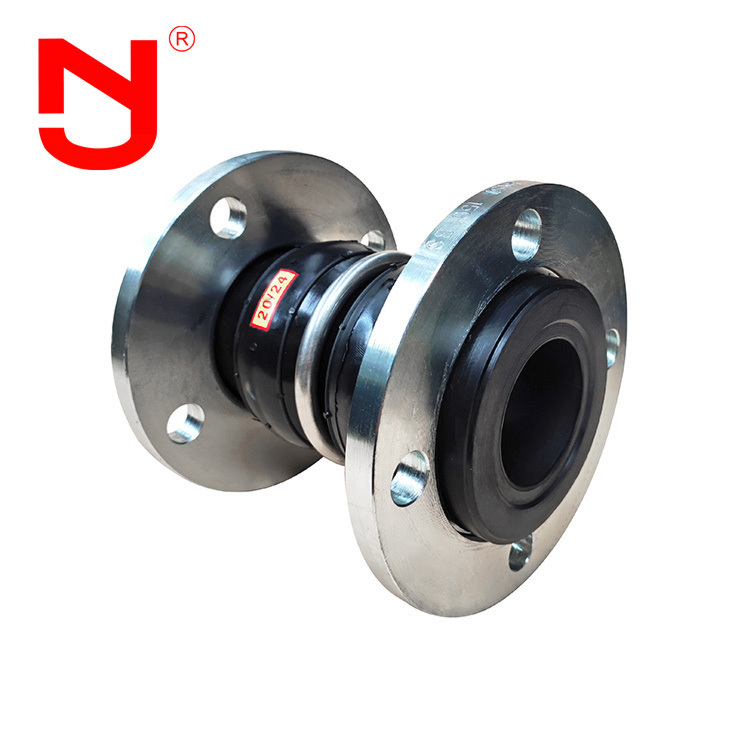

Double Sphere Rubber Fabric Joint Details Show
Double Sphere Rubber Fabric Joint Production Flow
Do you know how is a Double Sphere Rubber Fabric Joint made? Let's see with JINGNING.
It is very important to select the appropriate joint expansion, to understand the compatibility of the medium and the selected material of the joint expansion, the range of full temperature, full pressure and full vacuum, the amount of movement required, and the size between the pipe flanges. With this information, JINGNING application engineers can help determine the ideal joint expansion for any application.
Double Sphere Rubber Fabric Joint Application
EPDM expansion joint are widely used in various pipeline systems, such as the connection of joint expansion with pumps and valves, fire-fighting equipment and pipelines with large vibration. Pipes with frequent changes of heat and cold. Double sphere rubber expansion joint is mainly used for remote water and sewage lifting and transportation, water supply and cooling circulating water of thermal power plant, pipeline transportation of metallurgical industry, condensate water, chemical industry, cooling and dilution of petrochemical industry, and flexible connection between long and short distance pipelines in other industries. Because the double sphere rubber expansion joint has high wear resistance, joint expansion is also suitable for all industries of granular and powdery and gas low temperature.
FAQ
Q1: What's the package of Double Sphere Rubber Fabric Joint?
A1: The package is carton box and strong plywooden case.
Q2: What' the MOQ of Double Sphere Rubber Fabric Joint?
A2: 1 pc. We could delivery any quantity according to your requirements.
Q3: What's the face to face length of Double Sphere Rubber Fabric Joint?
A3: The face to face length can be L130, L152,L203... We also could accept customized length according to your requirements.
Q4: What's the material of flange ( retaining rings )?
A4: The material of flange can be carbon steel, stainless steel and ductile iron.
